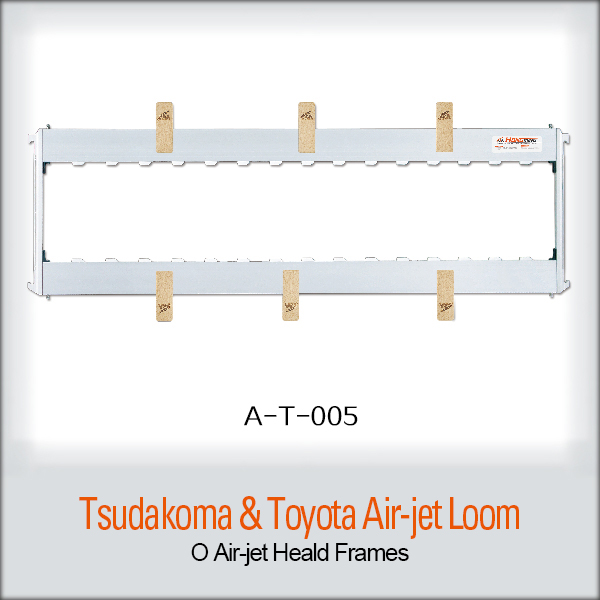

A-T-005
Product Specifications:
Shedding Mode: nagetive cam
Heald frame width: 190cm,210cm,230cm,280cm,340cm
Adaptation model: Tsudakoma and domestic looms
Height of stave: 100mm,110mm,120mm
Healds: O type, 280 mm, 302mm,330 mm
Product Technical Description:
1.The corner connection utilizes no moving parts,It use the 8N.m torque wrench to fasten with loom.
2.We use hard anodic oxdation coating in the lateral support(film thickness 40-50 um)
